Союз смотровое стекло + соскоб устройство пыли

Applications

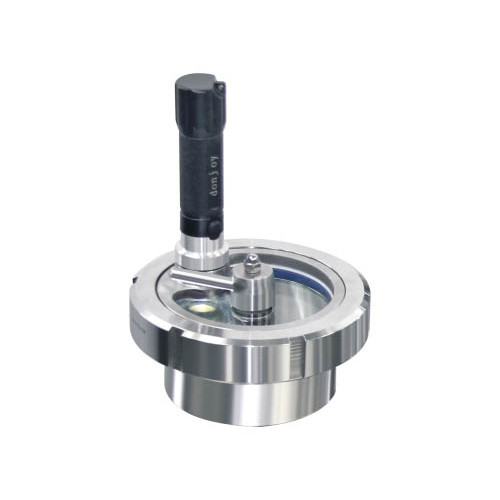

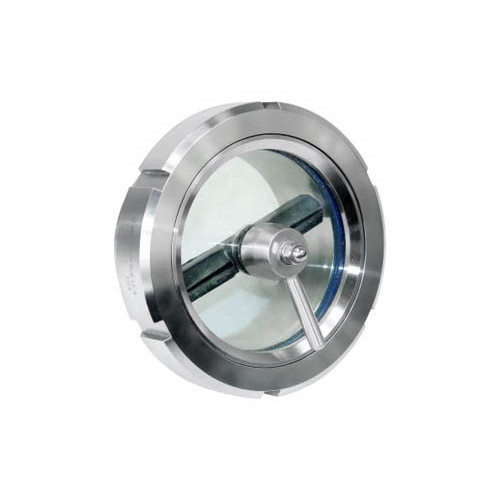

◆The main structure: nuts and clamp connections in two designs, with a circular transparent glass.

◆It is used viewing the biologic reactor, blender in laboratory, fitter, processing container,pipeline and other closed container. Especially apply in pharmacy,food and beverage processing, such as the brewery, dairy.

◆Dust scraping device mainly solves the long-term bubble generated because glass glass transparency decreased in the medium3

Technical specifications

◆Gasket ring：EPDM FPM,FDA177.2600

◆The parts contact with liquid：1.4301(304)；1.4404(316L)

◆Pressure：Vacuum-10bar

◆Temperature：-10℃ / 130℃

◆Size：2'-DN50-6'-DN150

Function Options

●Standard type+Wireless power supply, one charging can use 2-3 months (Depending on the frequency)

●Standard type+Cable power supply AC110V-220V，one charging can use 2-3 months (Depending on the frequency)

●Standard type+All stainless steel mirror lamp DC24V power supply

●No retention, zero dead angle, high light, white cold light source,waterproof, explosion-proof
